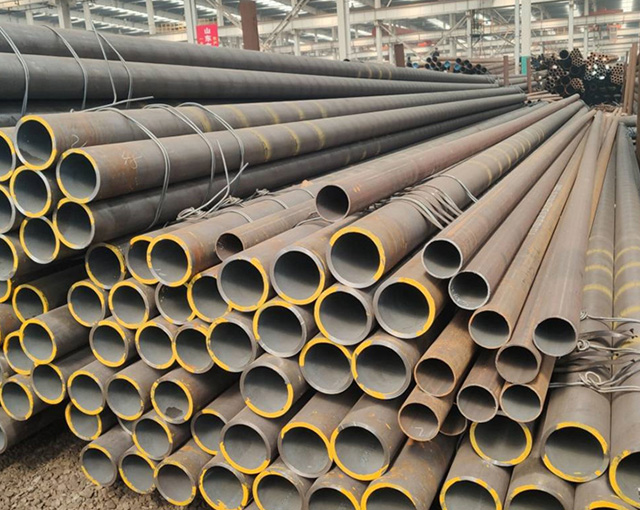

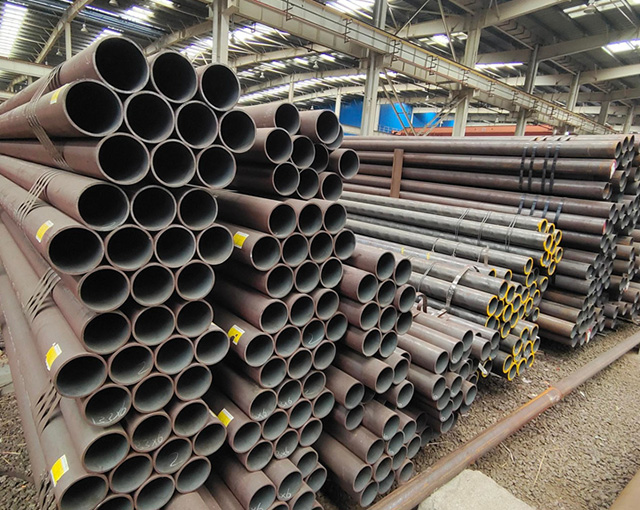

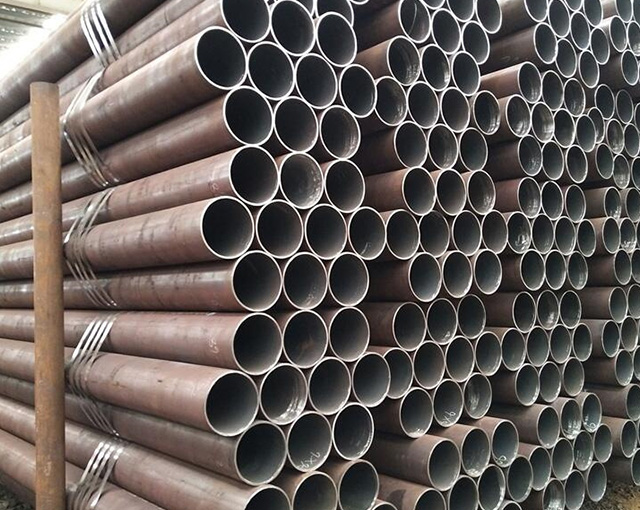

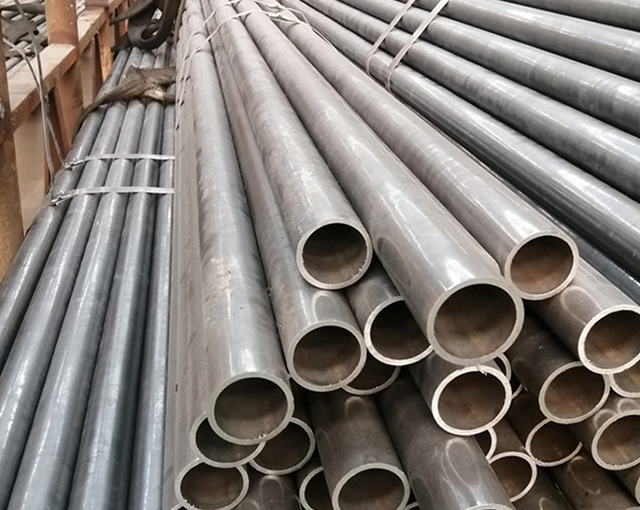

ASTM A214 ERW Boiler Tube

ASTM A214 Boiler Tube is a type of electric resistance welded boiler tube produced in accordance with ASTM A214 standard. This type of tube is mainly used in boilers, heat exchangers and other similar high temperature applications.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

ASTM A214 welded steel pipes follow the ASTM A214 standard, which specifies the technical requirements for seamless and electric resistance welded steel pipes for carbon steel boilers and superheaters. ASTM A214 ERW steel pipes are usually used in situations where they are subjected to fluid pressure, and require hydraulic testing to verify their pressure resistance and quality to ensure that they do not leak, soak or expand under the specified pressure. ASTM A214 ERW boiler tubes have good high temperature resistance, corrosion resistance and mechanical properties, and can operate stably for a long time under high temperature, high pressure and corrosive environments.

Data table

Chemical Composition of ASTM A214 CS Welded Boiler Tubes

Element	C	Mn	P	S
A/SA 214	0.18 max.	0.27 - 0.63	0.035 max	0.035 max

ASTM A214 CS Boiler Tubes Mechanical Properties

Tensile Strength KSI (MPa)	Yield Strength KSI (MPa)	Elongation min. %	Hardness
47[325]	26[180]	≥35%	≤72 HRB

Specifications : ASTM A214 / ASME SA214
Dimension Standard : ANSI B36.19M, ANSI B36.10
Welded Boiler Tube Range : 1/2" OD - 12" OD, Guage: 25 SWG - 10 SWG
Outer Diameter : 6.35 mm O.D to 114.3 mm O.D
Wall Thickness : 0.8 mm to12.7 mm
Type : Welded Boiler Tubes
Form : Round Tubes, Square Tubes, Rectangular Tube
