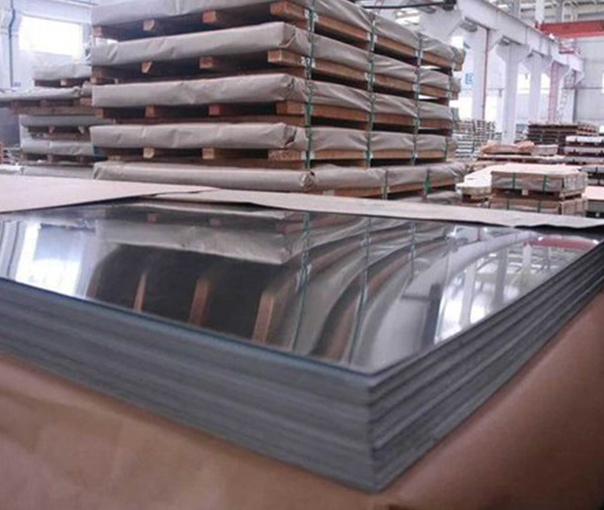

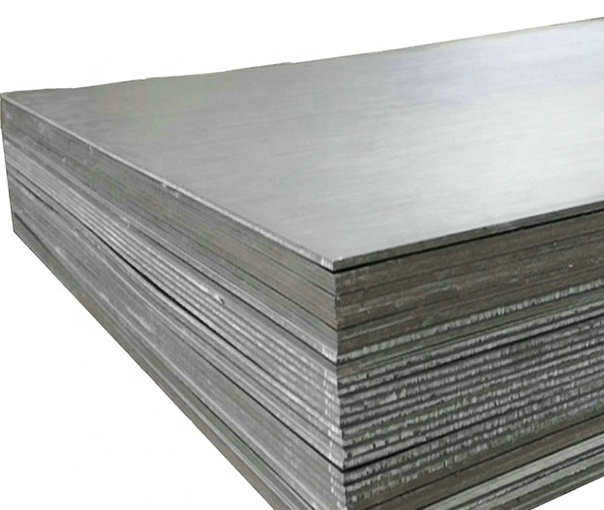

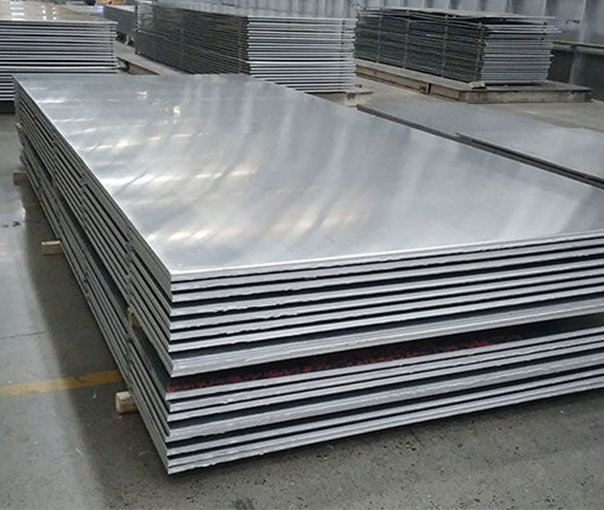

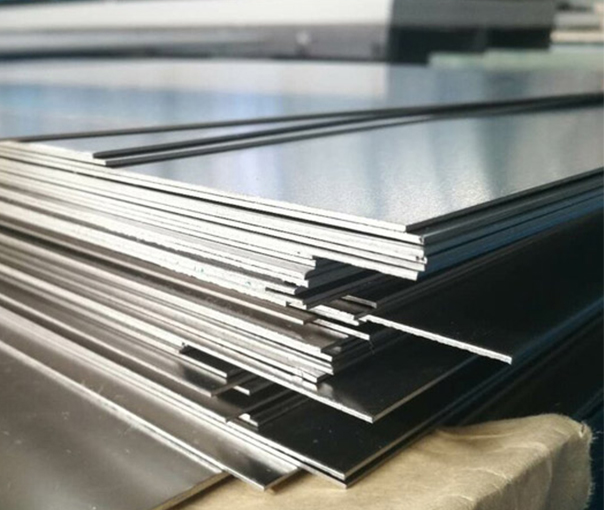

TITANIUM SHEET PLATE

Titanium is 30% stronger than steel, but is nearly 50% lighter. Titanium is 60% heavier than aluminum, but twice as strong. Titanium has excellent strength retention to 1,000 degrees Fahrenheit. Titanium is alloyed with aluminum, manganese, iron, molybdenum and other metals to increase strength, to withstand high temperatures, and to lighten the resultant alloy. Titanium’s high corrosion resistance is also a valuable characteristic; as when exposed to the atmosphere, titanium forms a tight, tenacious oxide film that resists many corrosive materials, particularly salt water.

Material:CP titanium, Titanium alloy

Standard:ASTM B265, AMS 4911, AMS 4902, ASTM F67, ASTM F136 etc

Quote Now

Send E-mail

product introduction

Short Description
Keywords:Titanium Sheet,Titanium Plate
Material:CP titanium, Titanium alloy
Grade:Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc
Size:0.3～5mm, Width: 400～3000mm, Length: ≤6000mm
Standard:ASTM B265, AMS 4911, AMS 4902, ASTM F67, ASTM F136 etc
Status:Hot Rolled (R), Cold Rolled(Y), Annealed (M), Solution treatment (ST)
Surface:Polishing, pickling, sand blast, anodizing, vacuum coating

Common Grades
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high form ability; this titanium grade is used in air frames, heat exchanges and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in air frames, aircraft engines and marine parts; good weld ability and corrosion resistance are its distinguishing characteristics.
Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weld ability. This titanium grade is primarily used in air frame and aircraft engine parts.
Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for air frame, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good form ability and corrosion resistance are its hallmark.
Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info Titanium 6AL – 4V ELI is an alloyed titanium product containing 6% Aluminum and 4% Vanadium, ELI (Extra Low Interstitial).

6AL–2Sn–4Zr–2Mo (6-2-4-2)is an alloyed titanium product containing 6% Aluminum, 2% Tin, 4% Zirconium, 2% Molybdenum.
6AL–6V–2Sn (6-6-2)is an alloyed titanium product containing 6% Aluminum, 6% Vanadium, 2% Tin.
5AL–2.5Sn & ELI (5-2.5)is an alloyed titanium product containing 5% Aluminum and 2.5% Tin. Also ELI (Extra Low Interstitial).
8AL–1V–1Mo (8-1-1)is an alloyed titanium product containing 8% Aluminum, 1% Molybdenum and 1% Vanadium.
15V–3Cr–4AL–3Sn (15-3-4-3)is an alloyed titanium product containing 15% Vanadium, 3% Chromium, 4% Aluminum, 3% Tin.

Technical Data

Chemical composition

Grade	Chemical composition, weight percent (%)
Grade	C ≤	O ≤	N ≤	H ≤	Fe ≤	Al	V	Pd	Ru	Ni	Mo	Other Elements Max. each	Other Elements Max. total
Gr1	0.08	0.18	0.03	0.015	0.20	—	—	—	—	—	—	0.1	0.4
Gr2	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr4	0.08	0.25	0.03	0.015	0.30	—	—	—	—	—	—	0.1	0.4
Gr5	0.08	0.20	0.05	0.015	0.40	5.5～6.75	3.5～4.5	—	—	—	—	0.1	0.4
Gr7	0.08	0.25	0.03	0.015	0.30	—	—	0.12～0.25	—	0.12～0.25	—	0.1	0.4
Gr9	0.08	0.15	0.03	0.015	0.25	2.5～3.5	2.0～3.0	—	—	—	—	0.1	0.4
Gr11	0.08	0.18	0.03	0.15	0.2	—	—	0.12～0.25	—	—	—	0.1	0.4
Gr12	0.08	0.25	0.03	0.15	0.3	—	—	—	—	0.6～0.9	0.2～0.4	0.1	0.4
Gr16	0.08	0.25	0.03	0.15	0.3	—	—	0.04～0.08	—	—	—	0.1	0.4
Gr23	0.08	0.13	0.03	0.125	0.25	5.5～6.5	3.5～4.5	—	—	—	—	0.1	0.1

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr4	80	550	70	483	95	655	15
Gr5	130	895	120	828	—	—	10
Gr7	50	345	40	275	65	450	20
Gr9	90	620	70	483	—	—	15
Gr11	35	240	20	138	45	310	24
Gr12	70	483	50	345	—	—	18
Gr16	50	345	40	275	65	450	20
Gr23	120	828	110	759	—	—	10
