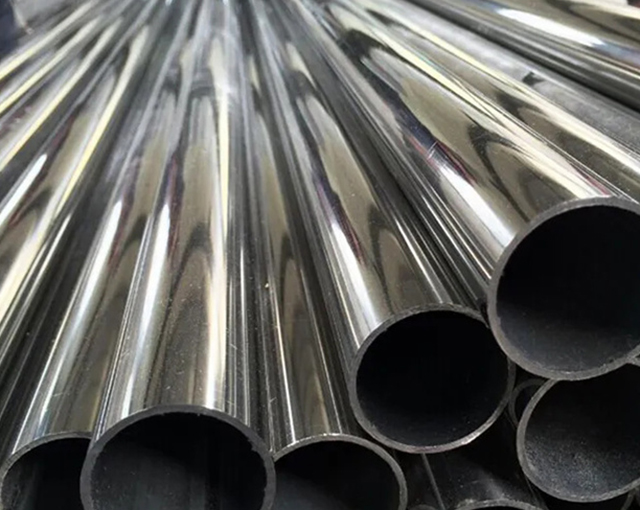

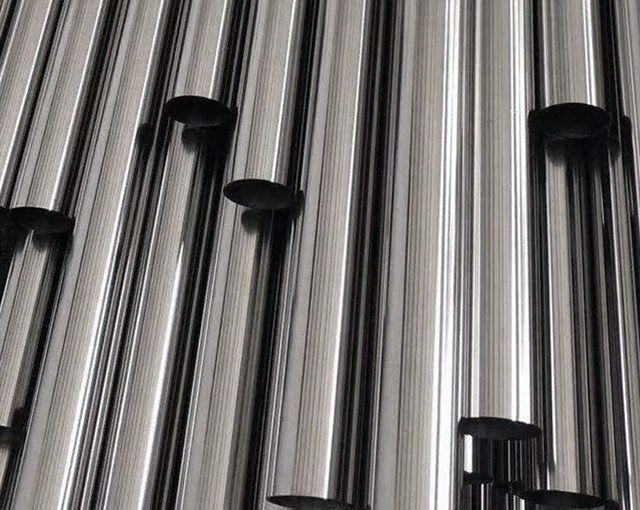

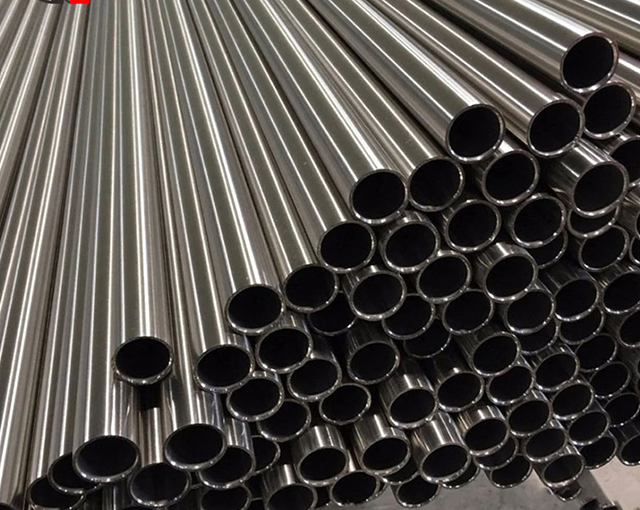

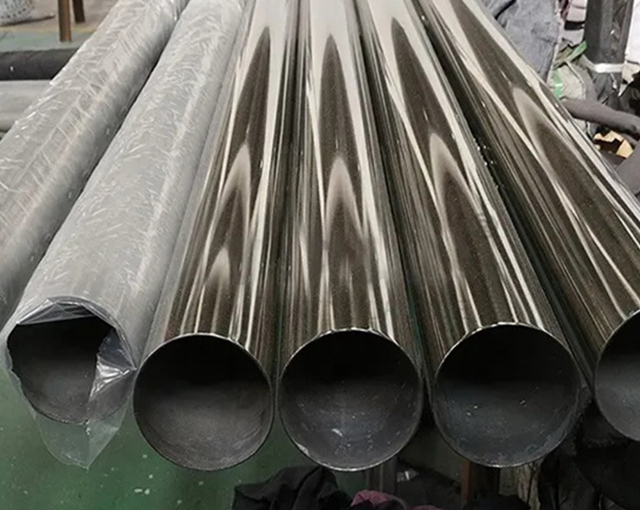

SS 310 Polished Pipe S31000

S31000 steel pipe is a stainless steel alloy with excellent high temperature resistance and corrosion resistance. It is a type of austenitic stainless steel.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

Stainless Steel 310, also known as UNS S31000, is an austenitic stainless steel with high chromium and nickel content. It is designed for high temperature applications and has excellent corrosion resistance.
S31000 stainless steel pipe has a density of 7.98 g/cm3 and a melting point range of 1402-1454 degrees Celsius. Due to its good high-temperature strength and oxidation resistance, the material is ideal for use in high-temperature environments.
The chemical composition of S31000 high temperature stainless steel pipe mainly includes carbon, silicon, manganese, phosphorus, sulfur, chromium and nickel. The specific contents are: carbon ≤ 0.25%, silicon ≤ 1.50%, manganese ≤ 2.00%, phosphorus ≤ 0.045%, sulfur ≤ 0.030%, chromium 24.00-26.00%, nickel 19.00-22.00%.
S31000 stainless steel composite pipe is widely used in many fields due to its excellent high temperature resistance and corrosion resistance. For example, in the manufacture of stoves and combustion devices, it can withstand harsh conditions in high-temperature furnaces and has excellent heat resistance. In addition, S31000 steel pipes are also used in corrosive environments in the chemical industry, refining and chemical equipment manufacturing, oil drilling equipment, etc.

Technical Data

Stainless Steel UNS S31000 Pipes Equivalent Grades

Grade		310
UNS No		S31000
Old British	BS	–
Old British	En	–
Euronorm	No	1.4841
Euronorm	Name	–
Swedish SS		–
Japanese JIS		SUS 310

ASTM A312 UNS S31000 Pipes Mechanical Properties

Grade		UNS S31000
Tensile Strength (MPa) min		515
Yield Strength 0.2% Proof (MPa) min		205
Elongation (% in 50mm) min		40
Hardness	Rockwell B (HR B) max	95
Hardness	Rockwell B (HR B) max	217

S31000 is mainly used to manufacture high-temperature stoves, heating coils, heat exchangers, chemical reactors and petrochemical equipment. Its manufacturing materials include: steel plates, steel pipes, steel rods, etc.
Physical properties: The physical properties of S31000 heat-resistant stainless steel pipe are as shown in the table below: Density: 7.98g/cm³; Thermal expansion coefficient: 16.0x10^-6/K; Thermal conductivity: 14.2W/(m.K); Resistivity: 0.75μΩ .m; Magnetism: Paramagnetism.

company advantage

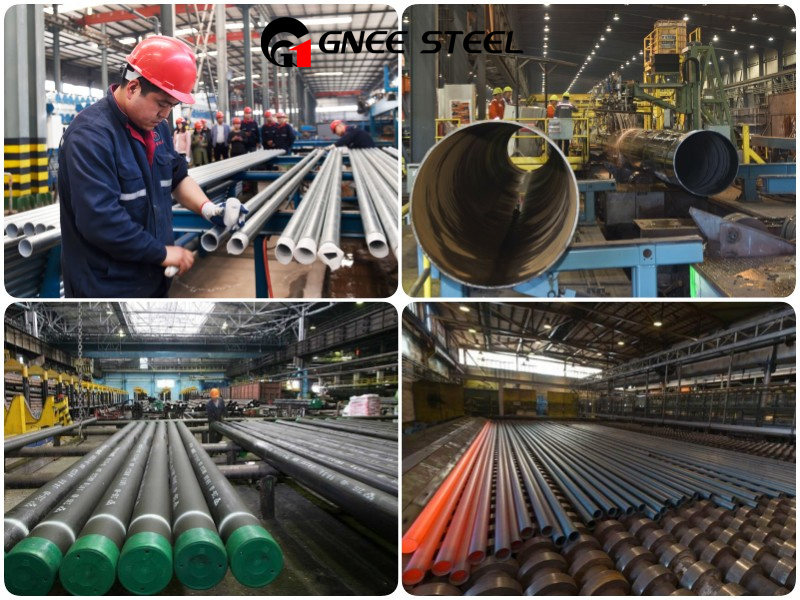

GNEE has obtained ISO-9001, TUV, SGS certification and other qualifications. The annual production capacity is more than 40,000 tons. With more than 200 employees, we can also provide non-standard processing services such as cutting, slitting, and laminating.

FAQ
1.Q.How can I trust you?
A. We think honesty is the core of our company, you can come to know it personally so that you can check our credit.
2.Q: How many specifications are available for the products and does it support customization?
A: We can produce most grades and specifications to meet your different needs. We specialize in customized service to meet the needs of different customers.
3.Q: How do your guarantee the quality?
A: Before mass production, there must be pre-production samples; before shipment, there must be final inspection.
