GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube
GB/T 18248 Seamless Gas Cylinder Tube

GB/T 18248 Seamless Gas Cylinder Tube

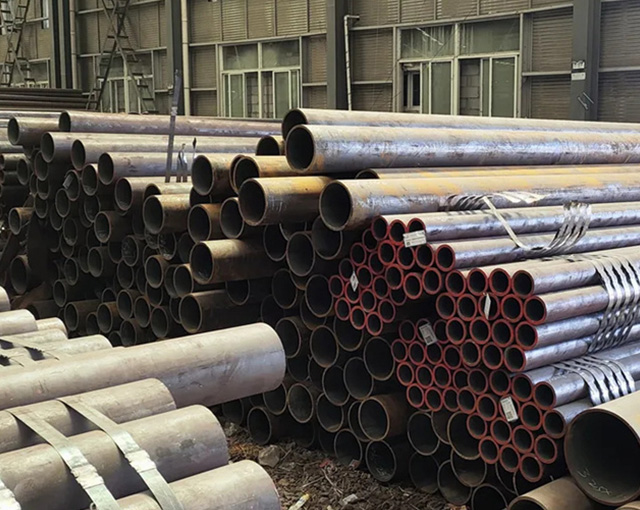

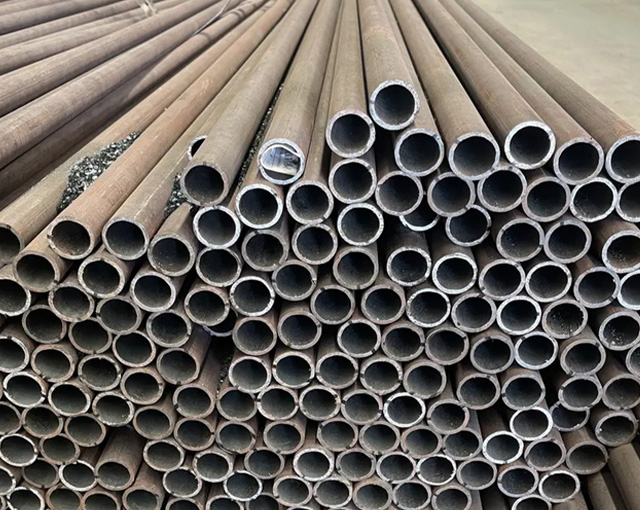

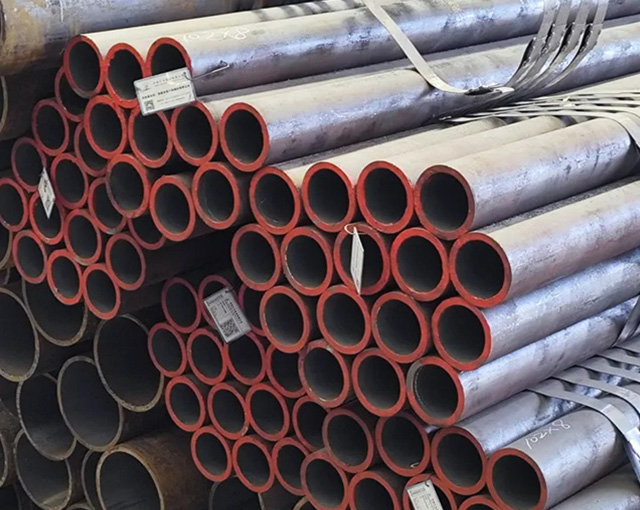

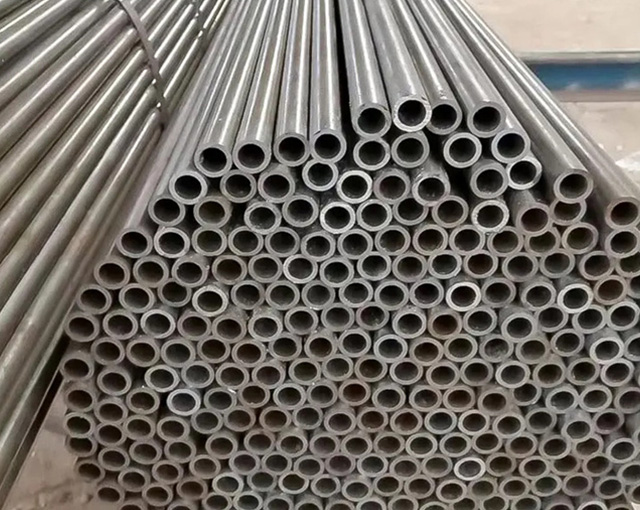

GB/T 18248 seamless gas cylinder tube is a kind of seamless steel tube for gas cylinders.
standard:GB
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
GB 18248 gas cylinder tube is a seamless steel tube with the implementation standard of GB18248-2000, mainly used for the production of various gas and hydraulic cylinders. Its wall thickness range is 3-55mm, the outer diameter deviation is ±0.75%, and the wall thickness difference is between -10% and +12.5%.
The roundness of the inner and outer diameters of the GB 18248 gas cylinder carbon steel tube does not exceed 80% of the outer diameter tolerance, the end face inclination is ≤2mm, and the straightness is 1mm/1m. In terms of surface quality, it is required to be free of cracks, folds, rolling, delamination and stuttering. The representative materials of this steel pipe include 37Mn, 34Mn2V, 35CrMo, etc., which are suitable for the production of large-volume gas cylinders.
Data table

Chemical Composition of GB/T 18248 Seamless Steel Tubes

Grade C Si Mn P b P+S Cr Mo V Ni Cu
37Mn 0.34 - 0.40 0.10 - 0.30 1.35 - 1.75 ≤ 0.020 ≤ 0.020 ≤ 0.030 ≤0.30 ≤0.30 ≤0.20
34Mn2V 0.30 - 0.37 0.17 - 0.37 1.40 - 1.75 ≤ 0.020 ≤ 0.020 ≤ 0.030 ≤0.30 0.07 - 0.12 ≤0.30 ≤0.20
30CrMo 0.26 - 0.34 0.17 - 0.37 0.40 - 0.70 ≤0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 0.15 - 0.25 ≤0.30 ≤0.20
35CrMo 0.32 - 0.40 0.17 - 0.37 0.40 - 0.70 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 0.15 - 0.25 ≤0.30 ≤0.20
34CrMo4 0.30 - 0.37 ≤0.40 0.60 - 0.90 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.90 - 1.20 0.15 - 0.30 ≤0.30 ≤0.20
30CrMnSiA 0.28 - 0.34 0.90 - 1.20 0.80 - 1.10 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 ≤0.10 ≤0.30 ≤0.20

Mechanical Properties of GB/T 18248 30CrMo Gas Cylinder steel Pipe

Standard Grade Tensile Strength(MPa) Yield Strength(MPa) Elongation(%)
GB 18248 37Mn ≥750 ≥630 ≥16
34Mn2V ≥745 ≥530 ≥16
30CrMo ≥930 ≥785 ≥12
35CrMo ≥980 ≥835 ≥12
34CrMo4 ≥980 ≥835 ≥12
30CrMnSiA ≥1080 ≥885 ≥10
company advantage

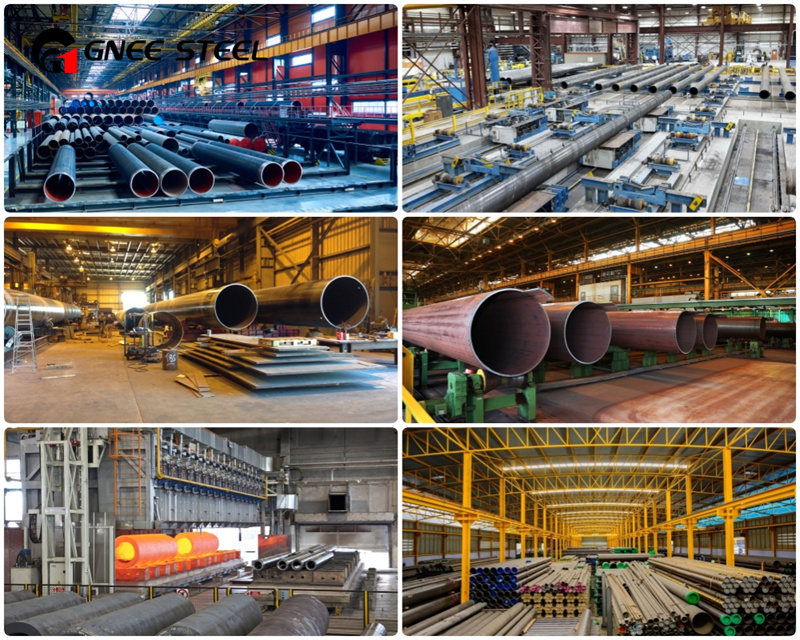

GNEE is a professional Chinese stainless steel pipe manufacturer and stainless steel pipe supplier, specializing in industrial stainless steel welded pipes and special alloy pipes, with an annual production capacity of up to 7000 tons.
