ASTM A333 Grade 1 Seamless Pipe

The ASTM A333 Cryogenic pipe is a seamless pipe suitable for low temperature environments.

standard:ASTM

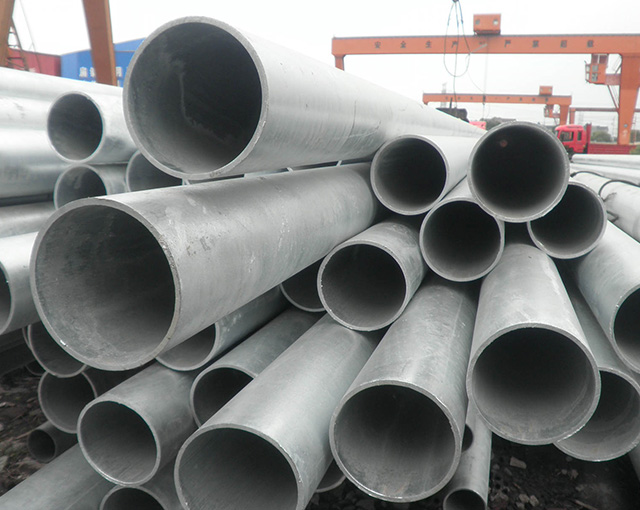

Surface :1. Galvanized 2. Black and Color Painting

introduction

A333 stage 1 tubes are primarily made of carbon steel with lower carbon content and some other alloying elements. This helps provide the required low-temperature toughness as well as sufficient strength and plasticity.
A333 Class 1 piping is suitable for extremely low temperature conditions. It is typically used in temperatures ranging from -50°F (-45°C) and below. Due to its low-temperature properties, the pipeline has important applications in liquefied natural gas (LNG) processing, frozen food industry and other fields.
A333 GR 1 cryogenic pipe has excellent low temperature resistance and can maintain good mechanical properties and corrosion resistance at extremely low temperatures. It is suitable for pipeline transportation and equipment manufacturing under low temperature conditions. Able to withstand impact and pressure in low-temperature environments, it is suitable for delivery systems of low-temperature gases and liquids.

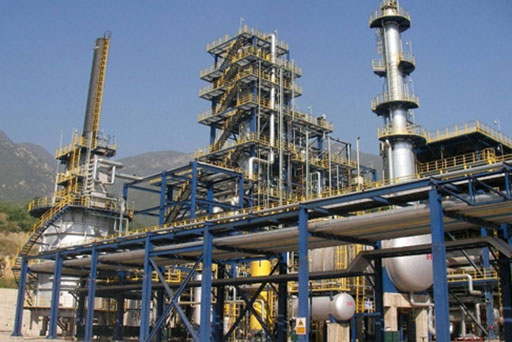

Widely used: A333 GR 1 pipe is widely used in cryogenic pipeline systems in petroleum, natural gas, chemical and other industries, and is especially suitable for the transportation of cryogenic liquids such as liquefied natural gas (LNG) and liquefied petroleum gas (LPG).

Technical Data

ASTM A333 Grade 1 Chemical Composition Comparison

	Composition, %
Element	Grade 1
Carbon, max	0.30
Manganese	0.40 – 1.06
Phosphorous, max	0.025
Sulfur, max	0.025
Silicon
Nickel (Ni)

ASTM A333 Gr 1 Carbon Steel Pipe Mechanical Analysis

A333 Gr. 1 Properties	Data
Yield strength (min), psi (MPa)	30,000 (205 Mpa)
Tensile strength (min), psi (MPa)	55,000 (380 Mpa)
Elongation(%)	35

A333 Grade 1 Pipe Test

Minimum Impact Test Temperature
-50 (F)	-45 (C)

ASTM A333 Grade 1 material Sizes
Outer Dimensions (OD): 19.05mm to 114.3mm
Wall Thickness: 2.0mm to 14 mm
Length: max 16000mm, or custom
ASTM A333, also known as ASTM/SA 333 Gr 1, is a standard for seamless and welded carbon and alloy steels used at low temperatures. This material is mainly used to manufacture cryogenic pressure vessels and cryogenic heat exchanger pipes operating in the temperature range of -45°C to -195°C, especially in the petroleum industry, dehydration applications, liquid transportation and circulating water.

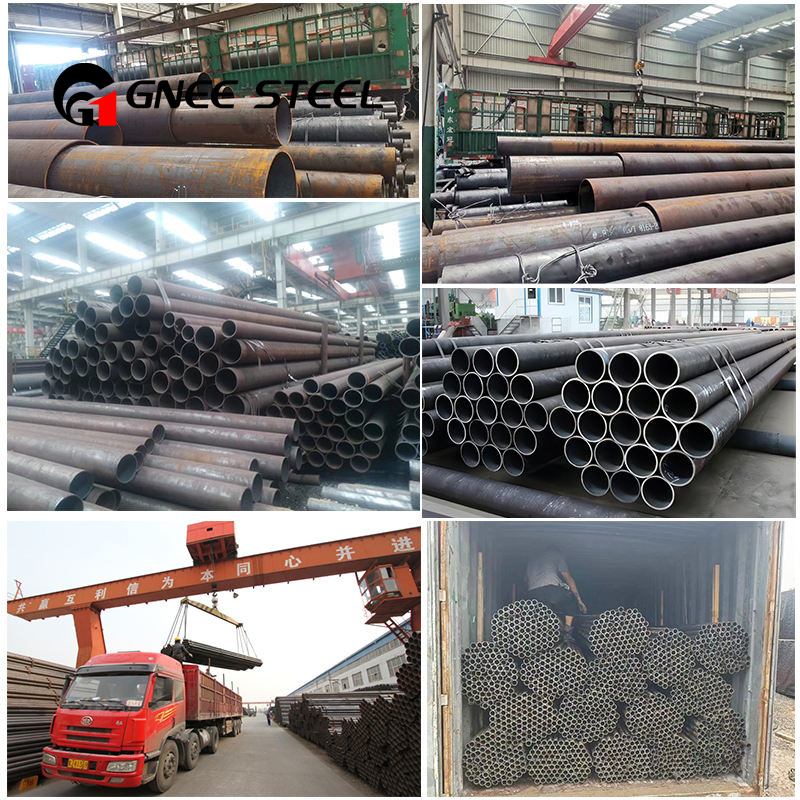

company advantage

FAQ
Q.Are you trading company or manufacturer ?
A: We are professional manufacturer for carbon steel pipe and our company also is a very professional a tradecompany for steel products.we can also provide a wide range of steel products.
Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
Q.What is the difference between ASTM A106 and A333?
A.The difference between ASTM A333 and ASTM A106 is that ASTM A333 is a low-temperature carbon steel pipe that can be used as a structural pipe, while ASTM A106 is a non-structural carbon pipe that is used in high-temperature applications.
