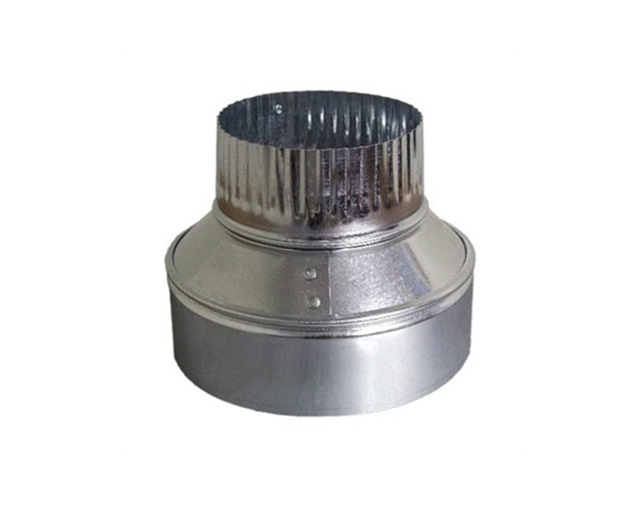

REDUCER

A steel pipe reducer is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter.

Bending Radius: R=1D~10D, R=15D, R=20D

Size:NPS from 3/4'' to 48'', DN from 20 to 1200,WT: 2-80mm, SCH 40/80/XXSS

Quote Now

Send E-mail

Product introduction

Keywords（pipe type）:Concentric Reducer, Eccentric Reducer
Size:NPS from 3/4'' to 48'', DN from 20 to 1200,WT: 2-80mm, SCH 40/80/XXSS
Bending Radius: R=1D~10D, R=15D, R=20D
Material & Standard:Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S; Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91
Ends:Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Packed in Wood Cabins/ Wood Tray
Usage:For conveying gas, water and oil either in the oil or natural gas industries
Description
A steel pipe reducer is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter. The length of the reduction here is equal to an average of the smaller and larger pipe diameters. Here, the reducer can be used as a diffuser or a nozzle. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems.

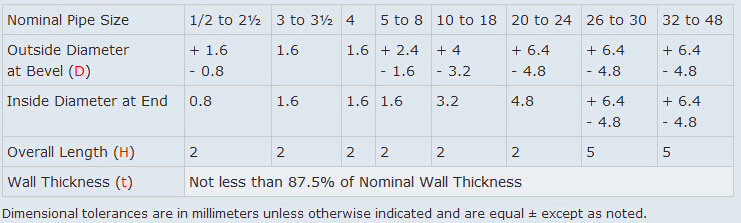

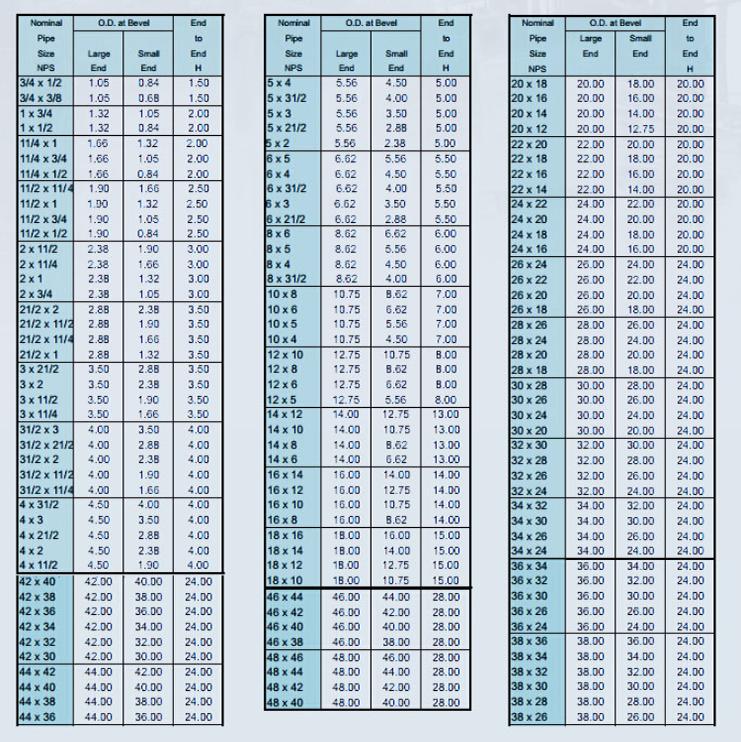

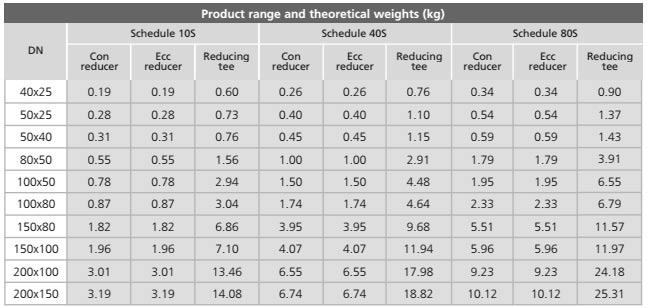

Technical data

Pipe Reducer, Reducer Fittings

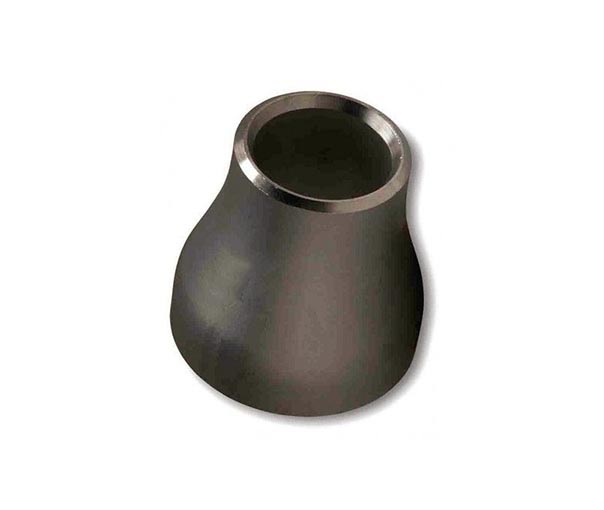

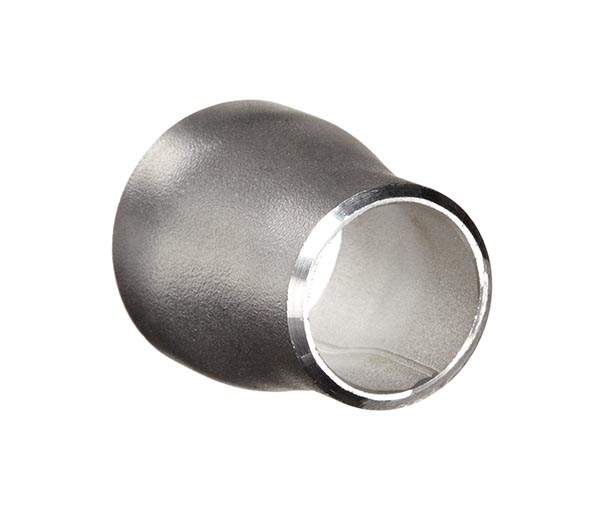

Steel Pipe Reducers available are of concentric and eccentric types. The pipe reducers are suitable components in pipelines that reduce pipe size from large to small bores. The inlet and outlet ends of the steel pipe reducers and alloy pipe reducers align to a common center line.

Standard

The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.
Carbon Steel Reducer material standards and grades:
A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.

For Stainless Steel Reducer:
ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.

For Alloy Pipe Reducer:
A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

Painting & Coating
Light Oiling, Black Painting
