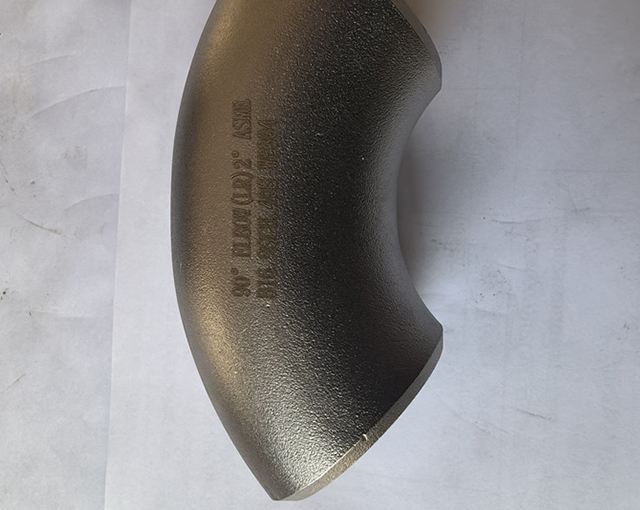

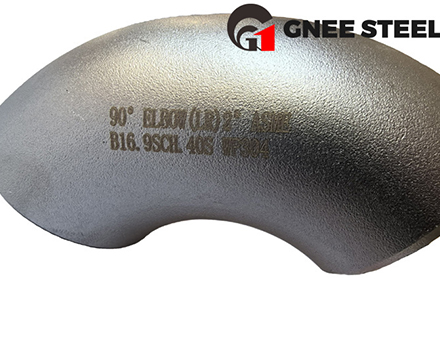

ASME B16.9 Carbon Steel Elbow A234

a234 is an American standard pipe fitting material, used for material representation of carbon steel elbows, tees, reducers, pipe caps, elbows and other products.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

The A234 standard includes carbon steel and alloy steel grades such as WPB, WP5, WP9, WP11, WP12, WP22, and WP91.
C-Mn-Si is low carbon alloy steel. It is similar to domestic Q345, Q345R, etc., and is equivalent to domestic Fe-1-2 material. Welding materials of E50 series for welding Fe-1-2 group.
There are many grades (grades) in ASTM A234 elbows, such as: WPB, WPC, WP11, WP12, WP22, WP91, etc.

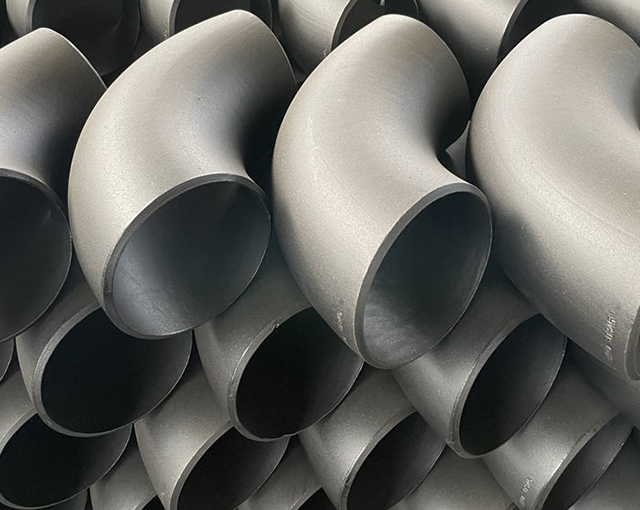

A234 elbows usually come in two types: long radius (usually 1.5 times the pipe diameter) and short radius (usually 1 times the pipe diameter).
ASME B16.9 carbon steel elbows usually use butt-weld connections, which means that the elbow and pipe are connected by welding, providing high strength and sealing.

Technical Data

Specification	Description
Standard	ASME B16.9, ASME SA-234
Material	Carbon Steel (ASTM A106, ASTM A234, etc.)
Elbow Angle	90 Degrees
End Preparation	Beveled for Welding (BW), Plain End (PE), Threaded End (TE)
Radius	Long Radius (1.5D), Short Radius (1D)
Pipe Size	Nominal Pipe Size (NPS): Range from 1/2" to 48"
Wall Thickness	Schedule 10, Schedule 40, Schedule 80, XS, XXS, etc.

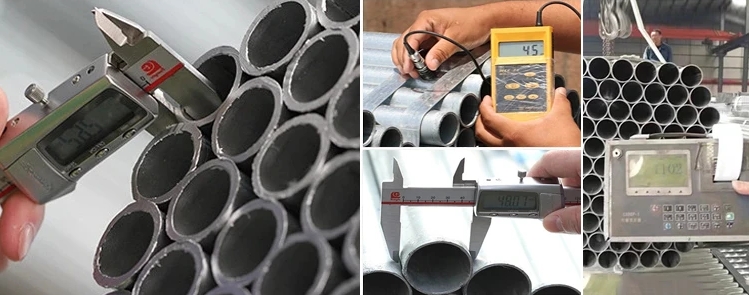

Testing	Hydrostatic Test, Visual Inspection, Dimensional Inspection, Non-Destructive Testing (NDT)
Pressure Rating	Class 150, Class 300, Class 600, Class 900, Class 1500, etc.

company advantage

gnee company currently has more than 30,000 tons of inventory, with many varieties for you to choose from! Alloy steel, plates, profiles, pipes, etc. Can implement GB, ASTM, JIS, DIN and other standards.

Extra long time industry experience
Management system - in-house software
Finished goods inventory-over 450 tonnes.
Raw material inventory-over 700 tonnes.

FAQ

1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.

2.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.

3.Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
