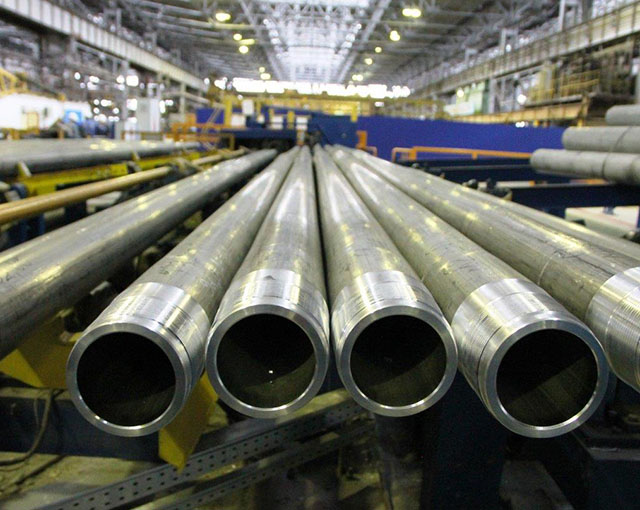

TUBING

Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete.

Standard & Grade:API 5CT J55/K55/N80/C75/L80/C90/T95/Q125

Ends:Beveled, Square Cut, With NUE/EUE Connection

Product introduction

Keywords（pipe type）:API Tubing,oil pipes,tubing
Size:OD: 40.26mm ~ 114.3mm； WT: 3.18mm ~ 16mm； LENGTH: R1, R2, R3
Standard & Grade:API 5CT J55/K55/N80/C75/L80/C90/T95/Q125
Ends:Beveled, Square Cut, With NUE/EUE Connection
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P

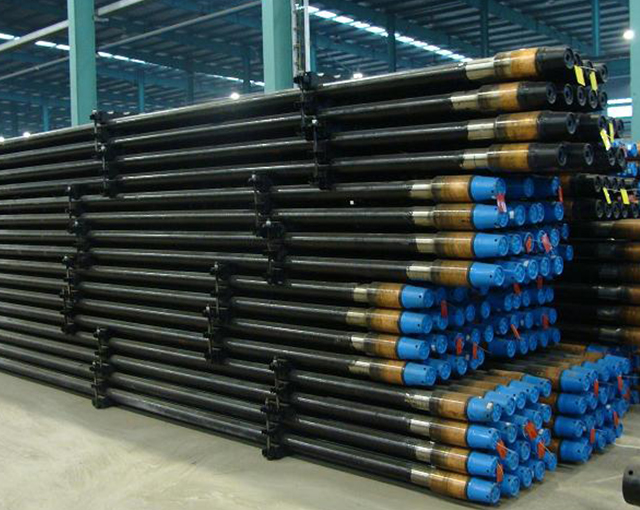

Packing:Protection Caps in both End, Waterproof Paper Wrapped, Two Tags
Usage:Used for the Transmission of Oil & Gas
Description
Process: ERW and Seamless
Standard: API 5CT
Certificate: Tubing: LTC, STC, BTC, VAM.Tubing: NUE, EUE.
Out Diameter: Casing: OD 4 1/2″- 20″ (114.3mm-508mm)
Tubing: OD 2 3/8″ – 4 1/2″ (60.3mm-114.30mm)
Wall Thickness: 0. 205″- 0.635″
Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
Steel Grade: H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125
Surface: Corrosion proofing water based paint
End: Beveled, Square cut. And pipe protection cap especially for casing and tubing.
Heat treatment: Normalized, Quencher+Temper
Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as “upsetting” is applied to thicken the pipes.

Technical data

Lengths:

Oil Tubing	Range 1	Range 2	Range 3
Oil Tubing	6.10~7.32	8.53~9.75	11.58~12.80

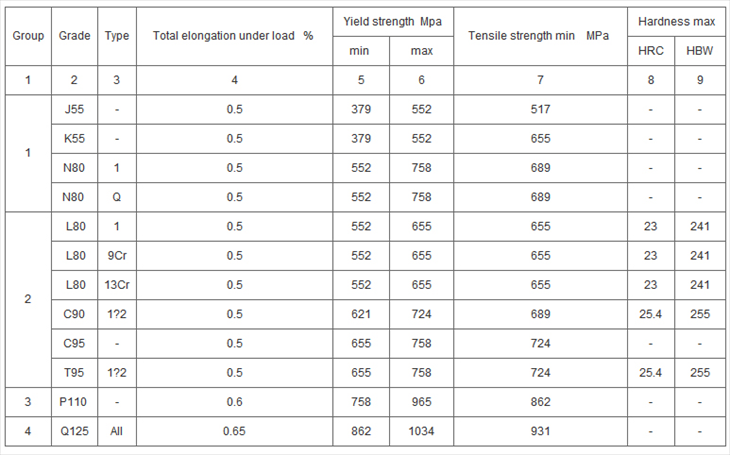

Mechanical Properties :

Label				D Outside diameter mm	Wall thickness mm	C Type of end-finish
1	2
	NU T&C	EU T&C	IJ
						H40	J55	L80	N80 1Q	C90	T95	P110

1	2	3	4	5	9	10	11	12	13	14	15	16
1.9	2.75	2.9	2.76	48.26	3.68	PNUI	PNUI	PNUI	PNUI	PNUI	PNUI	-
1.9	3.65	3.73	-	48.26	5.08	PU	PU	PU	PU	PU	PU	PU
1.9	4.42	-	-	48.26	6.35	-	-	P	-	P	P	-
2 3/8	4	-	-	60.32	4.24	PU	PN	PN	PN	PN	PN	-
2 3/8	4.6	4.7	-	60.32	4.83	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 3/8	5.8	5.95	-	60.32	6.45	-	-	PNU	PNU	PNU	PNU	PNU
2 3/8	6.6	-	-	60.32	7.49	-	-	P	-	P	P	-
2 3/8	7.35	7.45	-	60.32	8.53	-	-	PU	-	PU	PU	-
2 7/8	6.4	6.5	-	73.02	5.51	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 7/8	7.8	7.9	-	73.02	7.01	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	8.6	8.7	-	73.02	7.82	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	9.35	9.45	-	73.02	8.64	-	-	PU	-	PU	PU	-
2 7/8	10.5	-	-	73.02	9.96	-	-	P	-	P	P	-
3 1/2	7.7	-	-	88.9	5.49	PN	PN	PN	PN	PN	PN	-
3 1/2	9.2	9.3	-	88.9	6.45	PNU	PNU	PNU	PNU	PNU	PNU	PNU
3 1/2	10.2	-	-	88.9	7.34	PN	PN	PN	PN	PN	PN	-
3 1/2	12.7	12.95	-	88.9	9.52	-	-	PNU	PNU	PNU	PNU	PNU
3 1/2	14.3	-	-	88.9	10.92	-	-	P	-	P	P	-
3 1/2	15.5	-	-	88.9	12.09	-	-	P	-	P	P	-
4	9.5	-	-	101.6	5.74	PN	PN	PN	PN	PN	PN	-
4	10.7	11	-	101.6	6.65	PU	PU	PU	PU	PU	PU	-
4	13.2	-	-	101.6	8.38	-	-	P	-	P	P	-
4	16.1	-	-	101.6	10.54	-	-	P	-	P	P	-
4 1/2	12.6	12.75	-	114.3	6.88	PNU	PNU	PNU	PNU	PNU	PNU	-
4 1/2	15.2	-	-	114.3	8.56	-	-	P	-	P	P	-
