EN 10219 S355J2H Carbon Steel Pipe is a cold formed steel pipe with high strength and good low temperature toughness, suitable for various structural applications in heavy loads and low temperature environments.

standard:EN

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

S355J2H steel pipes supplied by GNEE can be produced using a variety of manufacturing processes, such as hot rolling, cold drawing, welding, etc.
Cold forming is a processing method that plastically deforms metal sheets or pipes at room temperature. During the cold forming process, the internal structure of the metal material will change, but there will be no phase change. The cold-formed S355J2H pipe can maintain high dimensional accuracy and surface quality, while also improving the strength and hardness of the material.
EN 10219 S355J2H carbon steel pipes have been widely used in construction, engineering machinery, steel structures, bridges, mining equipment, shipbuilding and other industries.

Data table

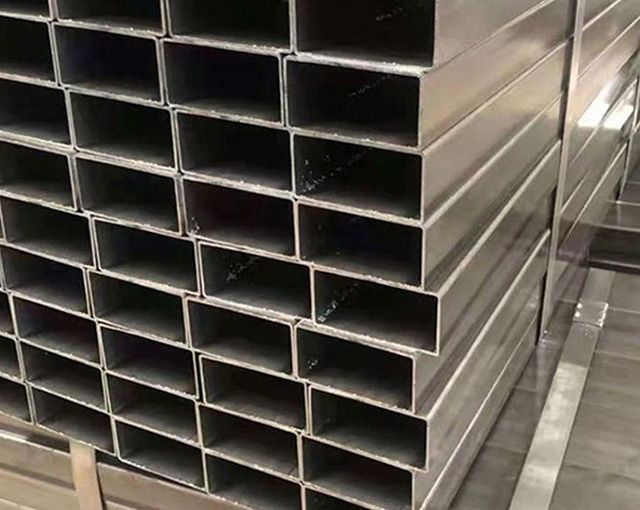

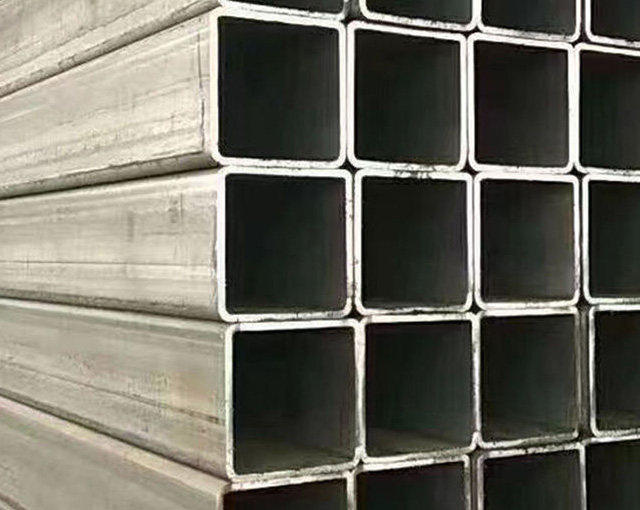

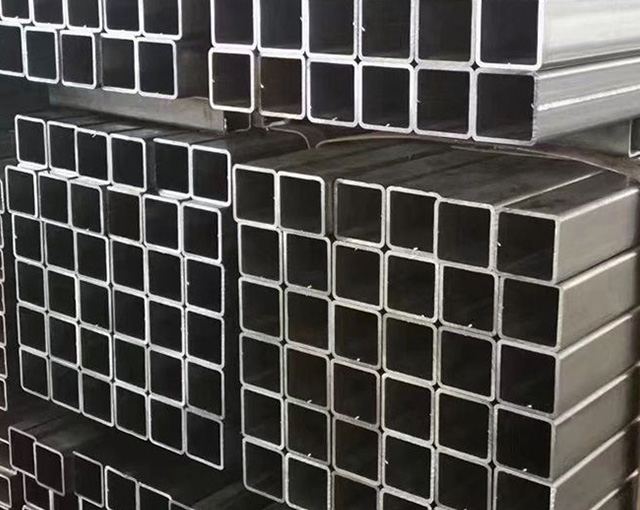

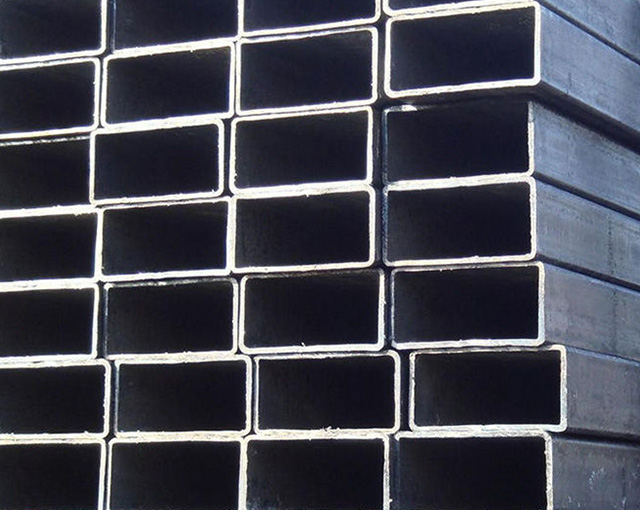

S355J2H Cold Formed Rectangular Hollow Section pipe Chemical Composition

Steel Grade	C	Si	Mn	P	S	N_b	Carbon Equivalent(CEV)
S355J2H	0.22	0.55	1.60	0.030	0.030	-	0.45

EN 10219 S355J2H Tubing Mechanical Properties

Grade	Min. Yield Strength R_eh(Mpa)		Tensile Strength Rm (MPa)		Elongation % Min.	Min. Impact Energy(J)
Grade	Thk≤ 16 mm	Thk>16 ≤ 40 mm	Thk<3 mm	Thk≥3 mm	Elongation % Min.	-20°C	0°C	20°C
S355J2H	355	345	510-680	470-630	20	27	-	-

EN 10219 S355J2H Hollow Section Specifications
Grade: S355J2H
Dimensions: 10mm x 15mm --- 150mmx50mm --- 300mmx400mm --- 600mmx550mm
Wall Thickness: 0.5mm - 25mm
Length: 6000-14000 mm
Type: Seamless / Welded / ERW

company advantage

Why Choose GNEE

GNEE has been in the steel industry for more than 16 years, specializing in seamless steel pipes, galvanized steel pipes, stainless steel pipes, ERW/SSAW/LSAW/welded pipes.
We have established long-term cooperative relationships with many famous steel manufacturers around the world, and we can provide you with the best quality products and competitive prices, giving you an edge over the competition.

FAQ

Q: What product information do I need to provide?
A: Please provide the grade, width, thickness, surface treatment requirements and purchase quantity you need.
Q: This is my first time importing steel products, can you help me?
A: Of course, we have an agent to arrange the shipment, and we will do it with you.
