ASTM A53 STEEL PIPE

Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe in NPS 1/8″ to NPS 26.  A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

A53 pipe comes in three types (F, E, S) and two grades (A, B).

A53 Type F is manufactured with a furnace butt weld or may have a continuous weld (Grade A only)

A53 Type E has an electric resistance weld (Grades A and B)

A53 Type S is a seamless pipe and found in Grades A and B)

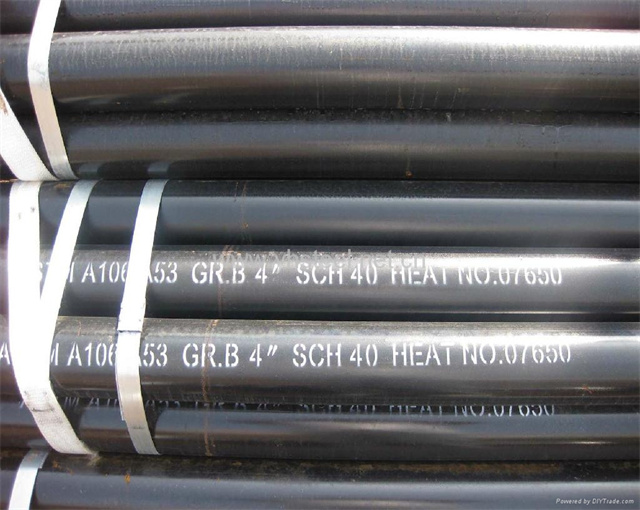

A53 Grade B Seamless is our most polar product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.

Federal Steel Supply has a full range of stock in A53 steel pipe (SA53 steel pipe) in:

Grade B

Sizes

NPS ¼” to NPS 26” O.D.

Wall thickness: Schedules 10 through 160, STD, XH and XXH
Commonly requested unscheduled walls up to 4” and certified minimum wall items

Permissible variations in outside diameter

Outside Diameter at any point shall not vary from standard specified more than:

For NPS 1 1/2 and Smaller Sizes		For NPS 2 and Larger Sizes
1/64″	1/32″ under	1% over	1%under



Tensile requirements

physical properties	Seamless and Electric-resistance-welded		Continuous-Welded
	Grade A	Grade B
Tensile Strength, min., psi	48000	60000	45000
Yield Strength, min., psi	30000	35000	25000



Number of tests required

Seamless and Electric-Resistance-Welded — Bending, flattening, tensile on one length of pipe from each lot of 500 lengths or less of a size. Continuous-Weld — Bending, flattening, tensile

NPS 1 1/2 & smaller	NPS 2 & larger
one / 25 tons	one / 50 tons



Hydrostatic testing

Hydrostatic inspection test pressures for plain end and threaded and coupled pipe are specified. Hydrostatic pressure shall be maintained for not less than 5 seconds for all sizes of seamless and electric-resistance-weld pipe.



Mechanical tests specified

	Degree of Bend	Diameter of Mandrel
For Normal A53 Uses	90	12 x nom dia. of pipe
For Close Coiling	180	8 x nom dia. of pipe

Tensile Test — Transverse required on ERW for NPS 8 and large. Sending Test (Cold) — STD and XS-NPS 2 and under XXS-NPS 1 1/4 and under.
Flattening Test — NPS 2 and larger STD and XS. (Not required for XXS pipe.)



Standard Weight

• Single Random — 16′ – 22′. 5% may be jointers. If Plain Ends — 5% may be 12′ – 16′.
• Double Random — Shortest Length 22′, minimum average for order 35′.

Extra Strong and Double Extra Strong

• Single Random — 12′ -22′. 5% may be 6′ – 12′.
• Double Random (XS and lighter) — Shortest Length 22′, minimum average for order 35′.
• Lengths longer than single random with wall thicknesses heavier than XS subject to negotiation.

Materials and Manufacture

The steel for both seamless and welded pipe shall be made by one or more of the following processes: open-hearth, electric furnace, or basic-oxygen. The weld seam of electric-resistance welded pipe in Grade B shall be heat treated after welding.
