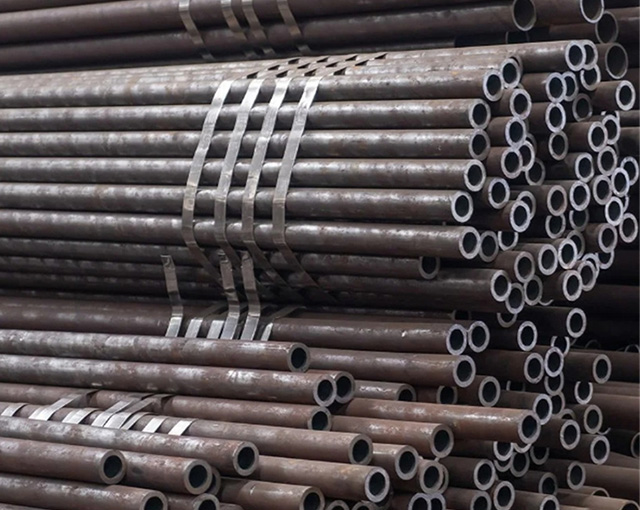

EN10216-2 P235GH Carbon Steel Pipe

introduction

EN10216-2 P235GH pipe is a non-alloy steel with specified high temperature performance, good plasticity, toughness, cold bending and welding performance, in line with European standards EN10216 and EN 10028.
EN10216-2 P235GH carbon steel pipe is particularly suitable for high temperature environment, can withstand high temperature and high pressure conditions, and is often used in the manufacture of boilers, pressure vessels and other equipment that require high temperature and high pressure resistance.
In addition, the EN10216-2 P235GH cold drawn pipe supplied by GNEE also involves deep processing services, including stamping, bending, etc., as well as rough processing services such as opening and stripping. ‌

Data table

Chemical composition of EN10216-2 Seamless Steel Boiler Tube

Element	% by mass	Element	% by mass
Carbon (C)	≤0.16	Silicon (Si)	≤0.35
Manganese (Mn)	0.60 to 1.20	Phosphorous (P) (max)	0.025
Sulphur (S) (max)	0.015	Aluminium (Al)	≤0.020
Nitrogen (N)	≤0.012	Chromium (Cr)	≤0.30
Copper (Cu)	≤0.30	Molybdenum (Mo)	≤0.08
Niobium (Nb)	≤0.020	Nickel (Ni)	≤0.30
Titanium (Ti) (max)	0.03	Vanadium (V)	≤0.02

Mechanical properties of EN 10216-2 P235GH Seamless Tube

Grade	Type	Thickness (mm)	Yield Strength MPa (min)	Tensile Strength MPa	Elongation % (min)	Impact Energy (KV J) (min)
Grade	Type	Thickness (mm)	Yield Strength MPa (min)	Tensile Strength MPa	Elongation % (min)	-20°	0°	+20°
P235GH	Normalized	≤16	235	360 to 480	24	27	34	40
		16> to ≤40	225	360 to 480	24	27	34	40
		40> to ≤60	215	360 to 480	24	27	34	40
		60> to ≤100	200	360 to 480	24	27	34	40
		100> to ≤150	185	350 to 480	24	27	34	40
		150> to ≤250	170	350 to 480	24	27	34	40

EN 10216-2 P235GH Seamless steel pipes for pressure applications - Technical delivery conditions: Non-alloy and alloy steel pipes with specified high temperature properties
Dimensions tolerances of EN 10216-2
Tolerances on outside diameter and wall thicknes

Outside Diameter D mm	Tolerances on D	Tolerances on T for a T/D ratio
		≤ 0,025	> 0,025 ≤ 0,050	> 0,050 ≤ 0,10	> 0,10
D ≤ 219,1	± 1% or ± 0.5mm whichever is the greater	± 12,5% or ± 0.4mm whichever is the greater
D > 219,1	± 1% or ± 0.5mm whichever is the greater	± 20%	± 15%	± 12,5%	± 10% a
a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T

company advantage

1.SGS and ISO9001 certified.
2.Extra long time industry experience
3.Management system - in-house software
4.Finished goods inventory-over 450 tonnes.
5.Raw material inventory-over 700 tonnes.

FAQ

1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
3.Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.

Service

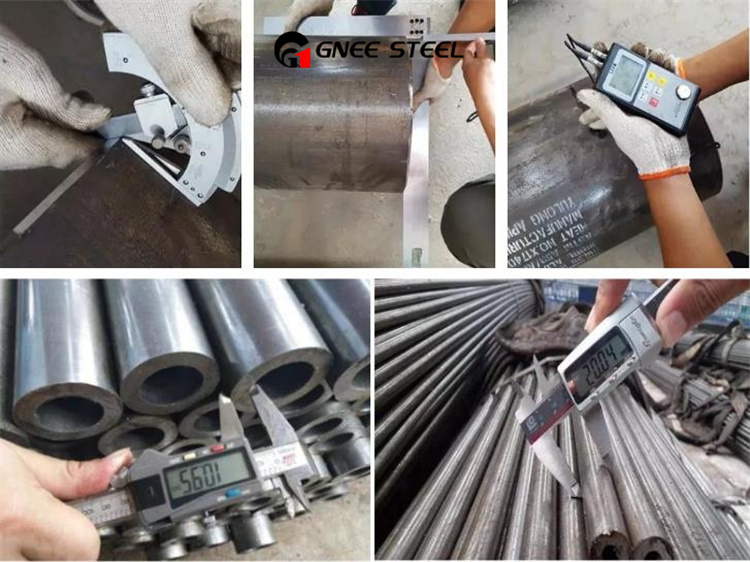

Certification and testing as per clients need

Third party inspections and approval

Inventory management as per clients

Logistics arrangement for client to help in cost cutting
