ASTM A513 Carbon Steel Mechanical Tubing

ASTM A513 Carbon Steel Mechanical Tubing

The ASTM A513 specification covers electric-resistance-welded carbon steel tubing for use as mechanical and ornamental tubing.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

ASTM A513 Steel Pipe is a specific steel pipe standard mainly applicable to carbon and alloy steel electric resistance welded steel pipes for mechanical engineering. It is widely used in American standards and is equivalent to the welded steel pipe in our country's standard GB/T3091-GB/T3092-GB/T14291.

ASTM A513 welded pipe process
Production through resistance welding process helps ensure the welding quality and overall structural stability of steel pipes. There are also clear specifications for the surface treatment, coating, packaging and marking of steel pipes to meet the needs of different engineering applications.
Application of ASTM A513 ERW steel pipe
Mainly used in construction, bridges, pipeline transportation, machinery manufacturing and other fields.
Comparison between A500 and A513 steel pipes
While A513 steel pipe has many similarities to A500 steel pipe, it is significantly less durable and is not suitable for heavy-duty structural components. However, since A513 can be machined to tighter tolerances, it performs better for more precise projects.

Data table

Chemical composition of ASTM A513 alloy steel resistance welded pipe


Grade Designation	Chemical Composition Limits, %
Grade Designation	Carbon	Manganese	Phosphorus, max	Sulfur, max
1010	0.05-0.15	0.30-0.60	0.035	0.035
1015	0.10-0.20	0.30-0.60	0.035	0.035
1020	0.15-0.25	0.30-0.60	0.035	0.035
1026	0.22-0.28	0.60-0.90	0.035	0.035

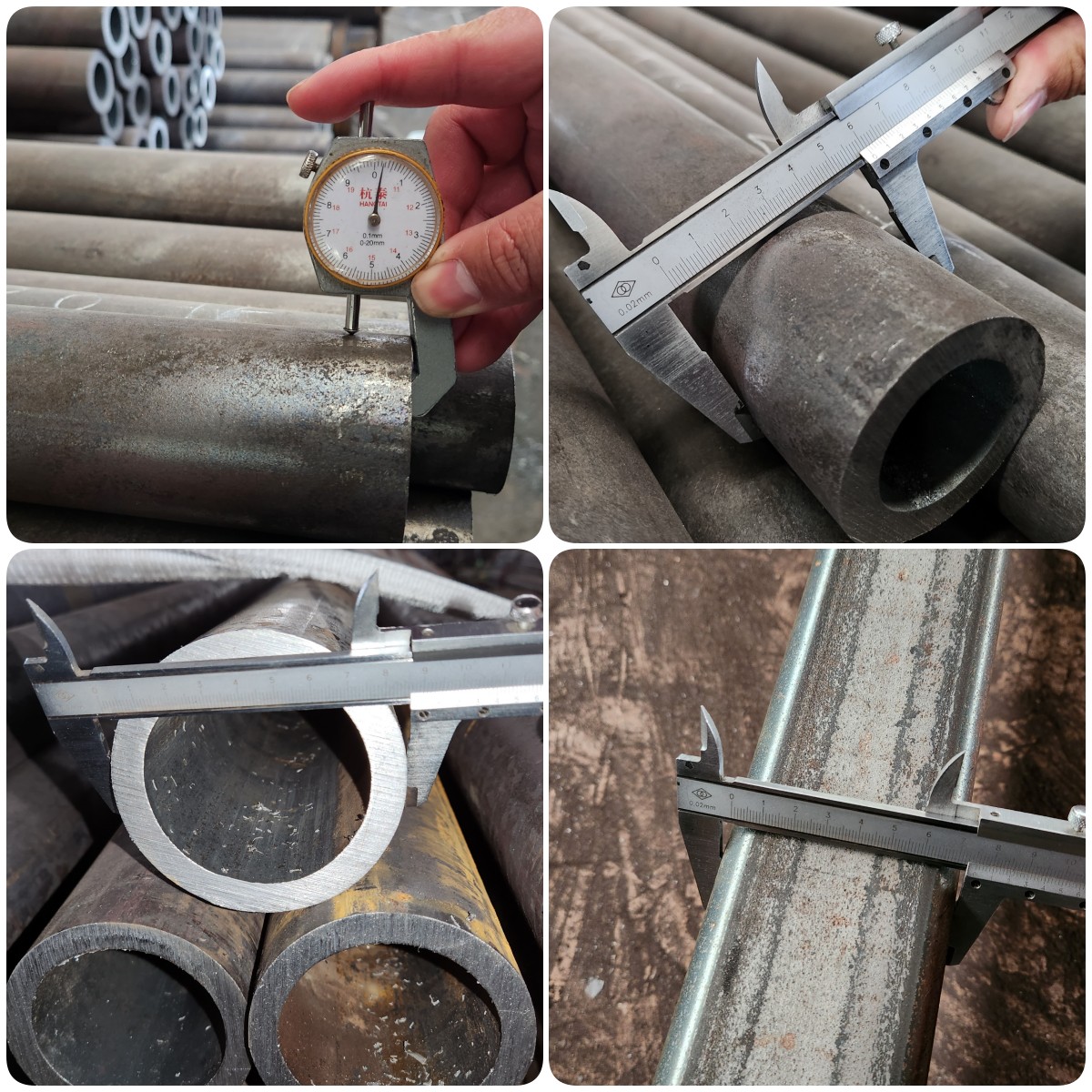

ASTM A513 Carbon Steel pipe Dimensions (Wall Thickness) Allowable Deviations by GNEE
The allowable deviation of wall thickness of A513-1 steel pipe is ±10% of the nominal wall thickness. Allowable variations in wall thickness for A513-5 DOM pipeare available upon request.
