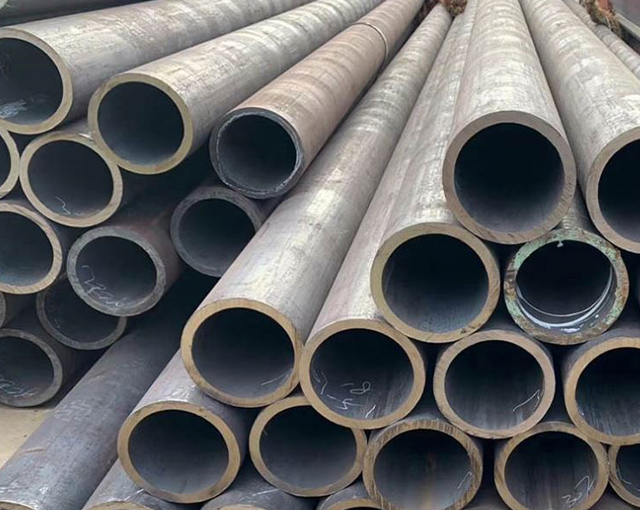

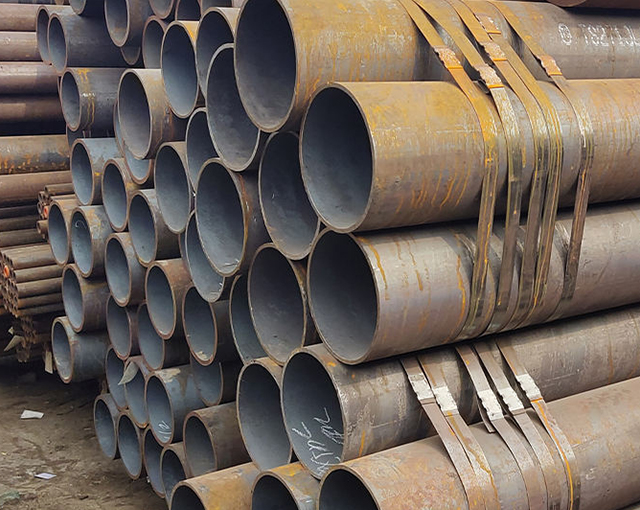

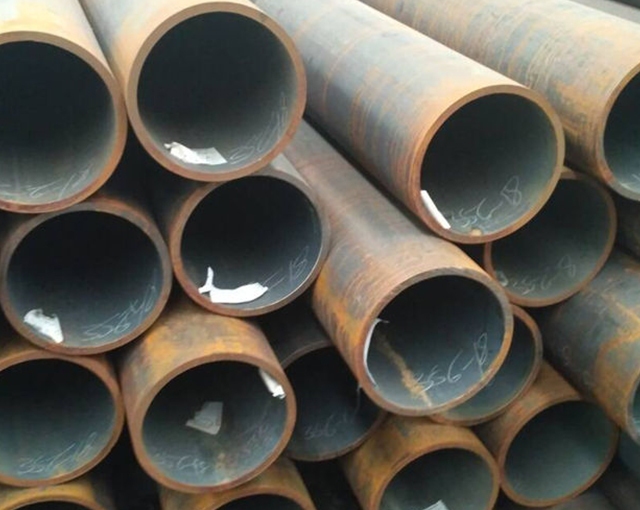

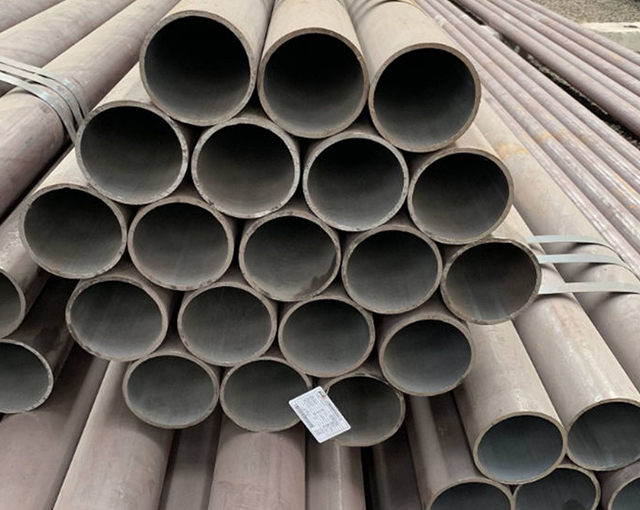

Carbon Steel Seamless Pipe

Seamless steel pipes are widely used in various fields, such as petroleum, chemical, natural gas, electric power, shipbuilding, papermaking, food and other industries.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Technical Data

Seamless steel pipe specifications

Product:	Seamless Pipe,Seamless Carbon Steel Pipe,Carbon Steel Seamless Pipe
Application:	For converying gas, water & oil for Fluids Transmission
Size:	OD: 10.3-1219.2mm
	WT: 1.65-60mm
	LENGTH: 5.8/6/11.8/12m
Pipe Standard:	API 5L
	ASTM A106
	JIS G3454,G3455,G3456
	DIN1629/EN10216-1
	EN 10208

Standards For Seamless Carbon Steel Pipes

ASTM A53 Gr.B	Black and hot-dipped zinc-coated steel pipes welded and seamless
ASTM A106 Gr.B	Seamless carbon steel for high temperature service
ASTM SA179	Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes
ASTM SA192	Seamless carbon steel boiler tubes for high pressure
ASTM SA210	Seamless Medium-carbon boiler and superheater tubes
ASTM A213	Seamless alloy-steel boiler, superheater, and heat-exchanger tubes
ASTM A333 GR.6	seamless and welded carbon and alloy steel pipe intended for use at low temperatures.
ASTM A335 P9,P11,T22,T91	Seamless ferritic alloy-steel pipe for high-temperature service
ASTM A336	Alloy steel forgings for pressure and high-temperature parts
ASTM SA519 4140/4130	Seamless carbon for mechanical tubing
API Spec 5CT J55/K55/N80/L80/P110/K55	Seamless steel pipe for casing
API Spec 5L PSL1/PSL2 Gr.b, X42/46/52/56/65/70	Seamless steel pipe for line pipe
DIN 17175	Seamless steel tube for elevated temperture
DIN2391	Cold drawn seamless prevision pipe
DIN 1629	Seamless circular unalloyed steel tubes subject to special requirements

Chemical Composition And Mechanical Properties Of Seamless Steel Pipes

standard	Grade	Chemical Components (%)					Mechanical Properties
standard	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
ASTM A53	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
ASTM A53	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.9	0.03	0.03	≥331	≥207
	B	0.28	-	1.2	0.03	0.03	≥414	≥241
	X42	0.28	-	1.3	0.03	0.03	≥414	≥290
	X46	0.28	-	1.4	0.03	0.03	≥434	≥317
	X52	0.28	-	1.4	0.03	0.03	≥455	≥359
	X56	0.28	-	1.4	0.03	0.03	≥490	≥386
	X60	0.28	-	1.4	0.03	0.03	≥517	≥448
	X65	0.28	-	1.4	0.03	0.03	≥531	≥448
	X70	0.28	-	1.4	0.03	0.03	≥565	≥483
API 5L PSL2	B	0.24	-	1.2	0.025	0.015	≥414	≥241
	X42	0.24	-	1.3	0.025	0.015	≥414	≥290
	X46	0.24	-	1.4	0.025	0.015	≥434	≥317
	X52	0.24	-	1.4	0.025	0.015	≥455	≥359
	X56	0.24	-	1.4	0.025	0.015	≥490	≥386
	X60	0.24	-	1.4	0.025	0.015	≥517	≥414
	X65	0.24	-	1.4	0.025	0.015	≥531	≥448
	X70	0.24	-	1.4	0.025	0.015	≥565	≥483
	X80	0.24	-	1.4	0.025	0.015	≥621	≥552
