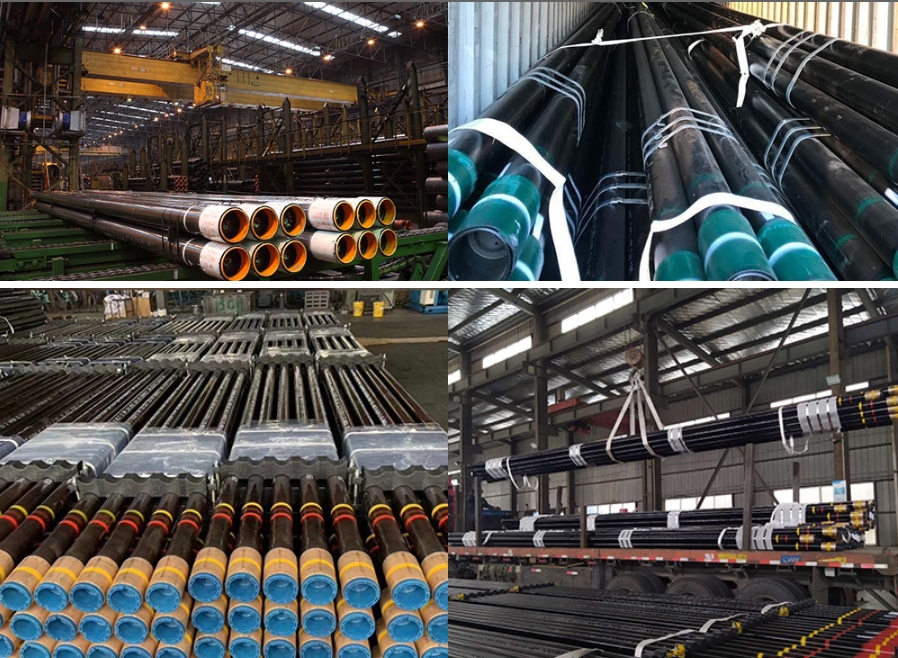

API 5CT Casing Pipe

API 5CT casing includes many types, such as J55, N80, P110, etc. These casings are mainly used in oil and natural gas pipelines and drilling and other application scenarios.
Available Sizes
Category:ERW, HFW or SMLS
Standards:API 5CT PSL1/PSL2  J55,K55,N80-1,N80-Q,API 5CT PSL1/PSL2  L80-1, L80-9Cr,L80-13Cr,C90, C95, P110, Q125
Steel Grade:H40, J55, K55, N80
Chemical compositions of casing pipe

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Mechanical properties of casing pipe

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max(HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-
